6-Head Profile Machine 6-Head Profile Machine 6-Head Profile Machine
Edge Processing Machines
BRV-056

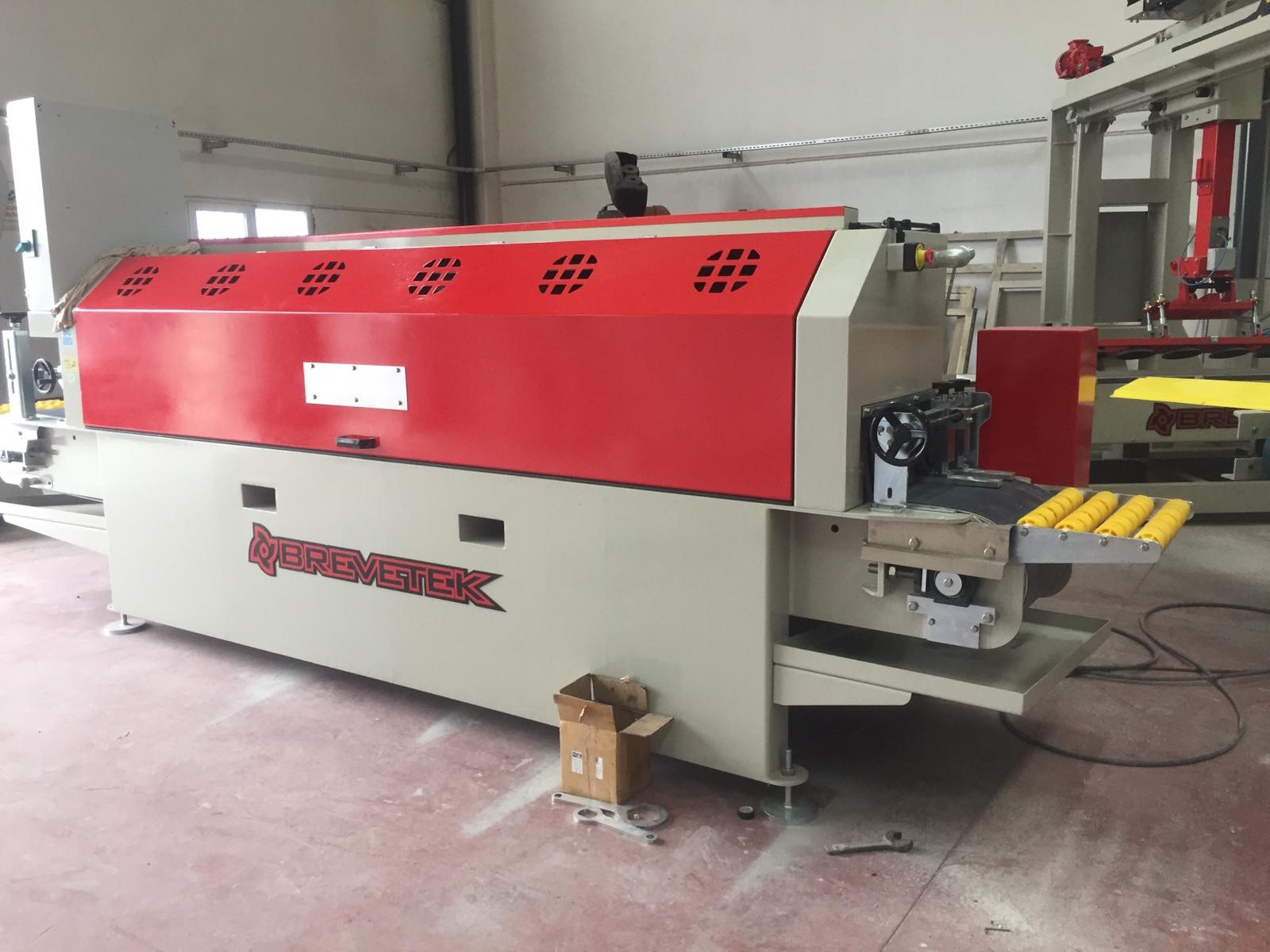

6-Head Profile Machine

Brevetek 6-Head Profiling Machine is designed to perform multiple edge profiling operations on natural stone and marble in a single pass, maximizing productivity. Its six independent profiling heads accurately create chamfered, flat, half bullnose, full bullnose, and custom edge profiles with exceptional precision. Featuring a heavy-duty frame, high production capacity, and reliable machining performance, it delivers fast, consistent, and premium-quality edge finishing.

Technical Specifications
1. First Head 11 kW
2. Number of Profiling Heads 6 Units
3. Profiling Motor Power 7.5 kW
4. Profiling Disc Diameter Ø200 - Ø300 mm
5. Conveyor Belt Motor Power 0.75 kW
6. Conveyor Belt Speed 0-6 m/min
7. Belt Width 500 mm
8. Profiling Head Up-Down Adjustment Manual
9. Profiling Head Forward-Backward Adjustment Manual
10. Frame Type W Column
11. Max. Stone Processing Width 300 mm
12. Max. Stone Thickness 50 mm
13. Min. Stone Thickness 20 mm
Request a quote for this machine
